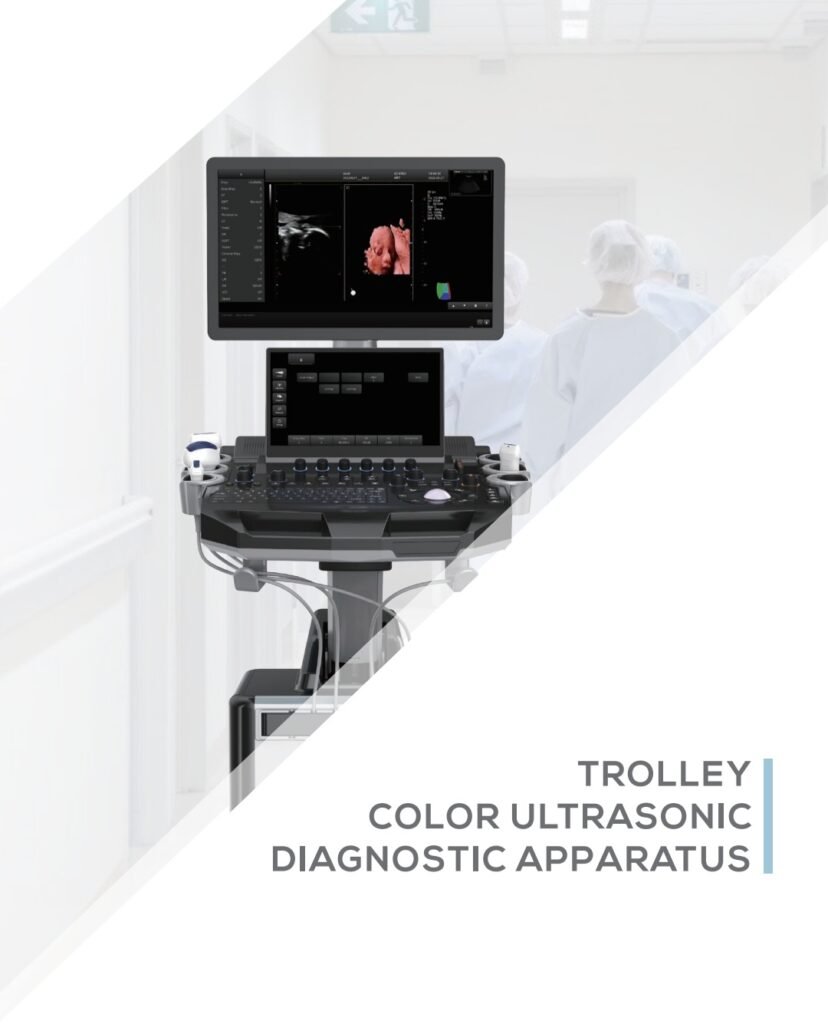

The Trolley Color Ultrasonic Diagnostic Apparatus is a next-generation color Doppler ultrasound system designed for precise, high-resolution medical imaging across multiple clinical disciplines.
Built for hospitals, diagnostic centers, and private medical practices, this advanced ultrasound machine combines cutting-edge imaging technology with ergonomic mobility and intelligent workflow automation. It supports clinicians with crystal-clear visualization, faster diagnosis, and optimized patient outcomes — making it a world-class solution for professional diagnostic imaging.
Whether used in general imaging, obstetrics, gynecology, cardiology, vascular or musculoskeletal exams, the Trolley Color Ultrasonic Diagnostic Apparatus delivers unmatched clarity and versatility.
Key Features of the Trolley Color Ultrasonic Diagnostic Apparatus
🔹 1. Dual-Screen Display System
-

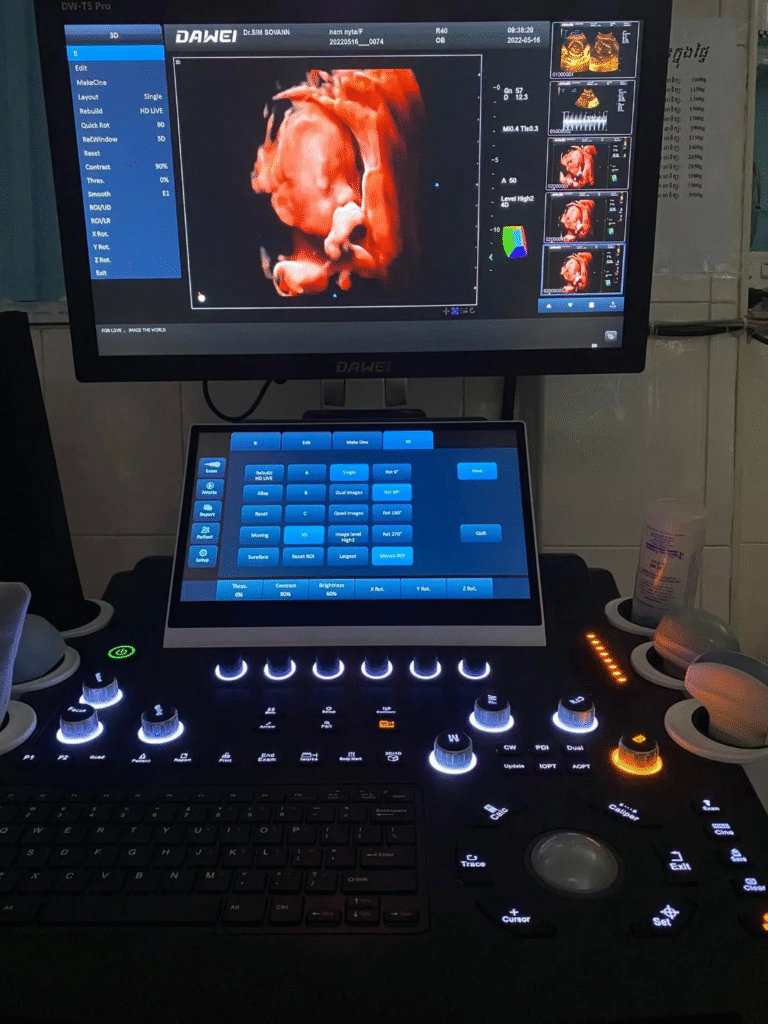

21.5-inch Full HD Medical Display: Provides bright, high-contrast visualization of scans in real time.
-
13.3-inch Adjustable Touchscreen: Offers intuitive control with 0°–45° tilt for ergonomic use.
🔹 2. Smart Adjustable Operation Panel
-
Horizontally adjustable up to 110° for comfortable positioning.
-
Vertically adjustable up to 18 cm, accommodating operators of different heights.
🔹 3. Multi-Probe Compatibility
-
Supports up to 4 active probe interfaces, reducing time spent switching during examinations.
-
Includes detachable probe holders for easy cleaning and organization.
🔹 4. Advanced Mobility
-
Compact trolley design with directional locking wheels ensures stability and smooth movement between patient rooms or departments.

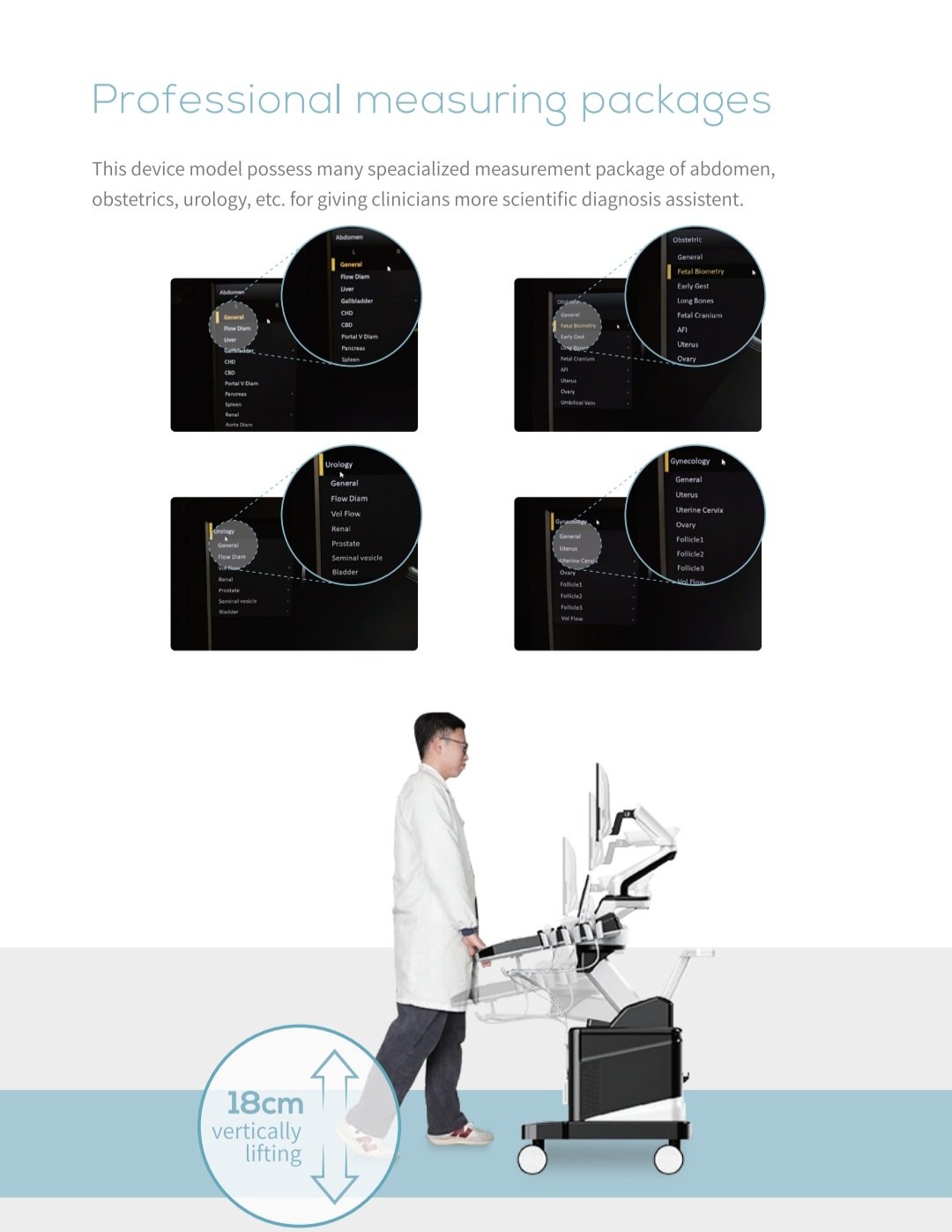

🔹 5. Professional Measurement Packages
Preloaded with measurement modules for:
-
Abdomen
-
Obstetrics
-
Gynecology
-
Pediatrics
-
Urology
-
Vascular
-
Cardiology
-
Small Parts
-
Musculoskeletal (MSK)
These specialized measurement tools simplify examinations and improve diagnostic precision across medical fields.
Advanced Imaging Technologies
The Trolley Color Ultrasonic Diagnostic Apparatus integrates a suite of imaging innovations that enhance accuracy, resolution, and diagnostic confidence.
🔸 Trapezoidal Imaging
Expands the scanning field into a trapezoidal view, providing a wider and clearer perspective for general imaging and organ evaluation.
🔸 Directional Power Doppler Imaging (DPDI)
Displays two-color directional blood flow with exceptional sensitivity and reduced color blooming — allowing more accurate detection of vascular structures and abnormalities.
🔸 Tissue Harmonic Imaging (THI)
Improves image contrast and spatial resolution while eliminating near-field artifacts. Particularly useful for cardiovascular and abdominal diagnostics.
🔸 Micron Imaging Technology
Offers real-time tracking and pixel-level enhancement for superior visualization of tissue boundaries and microstructures.
🔸 Clean Filter Technology
Filters unwanted noise and enhances signal-to-noise ratio for sharper, high-fidelity ultrasound images.
Enhanced Software & Workflow Optimization
Powered by the YH+ Operation Platform, this system ensures lightning-fast data processing, advanced control, and smooth user experience.
⚙️ YH+ Operation Platform
-
4G RAM + 128G Intel PC-based system
-
Rapid data processing and image rendering
-
Intuitive human–machine interaction for seamless workflow
⚙️ Sub-array Technology
-
Maximizes high-resolution image details
-
Increases clinical accuracy and diagnostic confidence
⚙️ DICOM 3.0 Connectivity
-
Integrates effortlessly with hospital PACS systems
-
Enables fast, secure transmission and image sharing across departments
⚙️ LAN Sharing Capability
-
Share ultrasound videos or images to a PC in real time via LAN connection
⚙️ One-Key Optimization
-
Instantly enhances imaging with a single click
-
Saves scanning and diagnostic time
⚙️ Spectrum Envelope Function
-
Analyzes PSV, EDV, RI, PI, S/D, ACC, HR, and more
-
Generates precise vascular and hemodynamic data

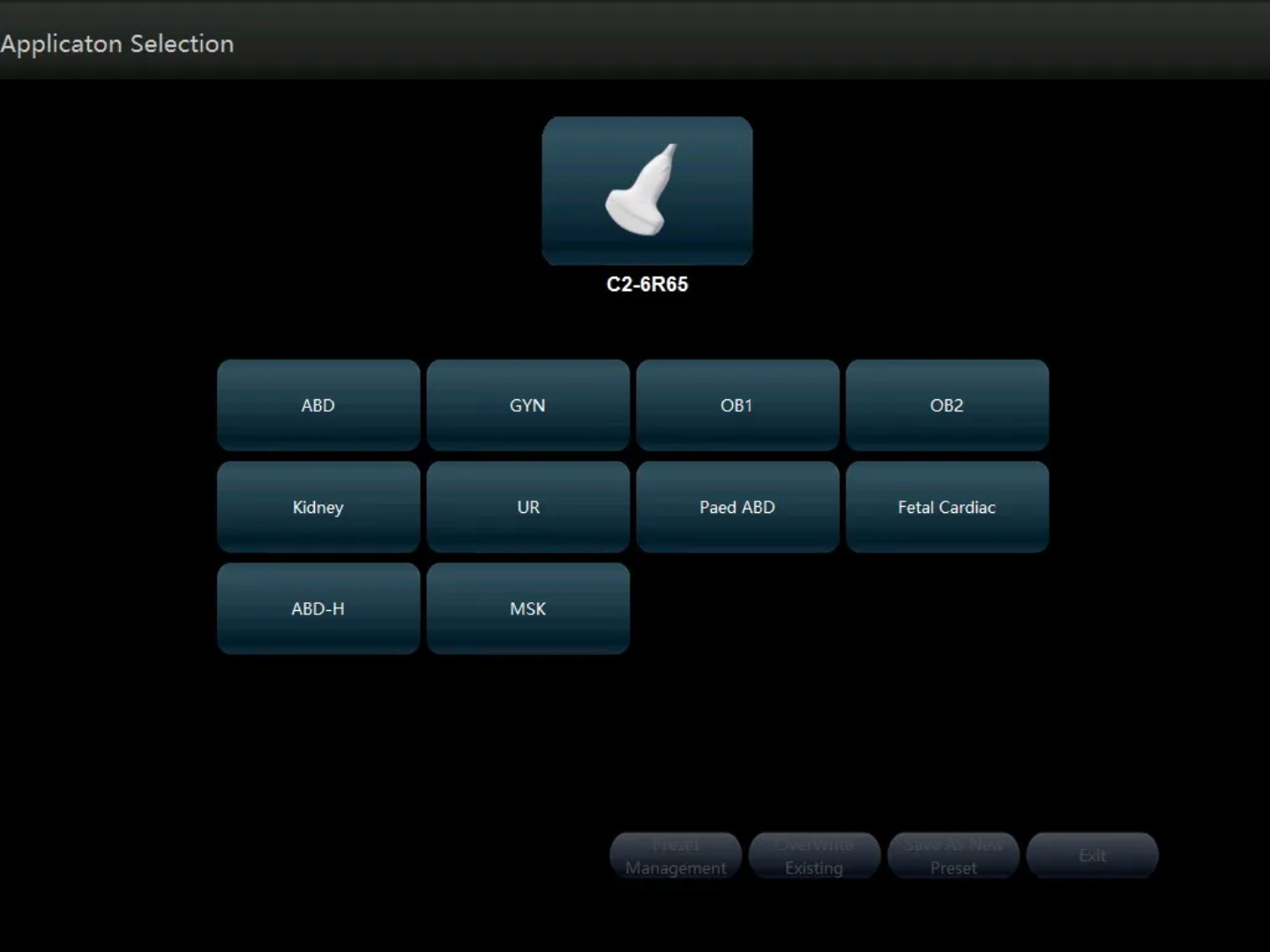

⚙️ Optimized Image Condition Presets
-
Predefined image parameters tailored to specific exams
-
Reduces setup time and ensures consistency across operators
Clinical Applications
The Trolley Color Ultrasonic Diagnostic Apparatus is an all-in-one imaging solution suitable for diverse clinical needs:
| Application | Clinical Use |
|---|---|
| Abdomen | Liver, gallbladder, spleen, kidneys, pancreas |
| Obstetrics | Pregnancy monitoring, fetal growth, 4D fetal imaging |
| Gynecology | Uterus, ovaries, endometrium |
| Cardiology | Cardiac chambers, heart valves, blood flow dynamics |
| Pediatrics | Infant organ evaluation and developmental monitoring |
| Vascular | Arterial and venous flow analysis |
| Urology | Bladder, prostate, kidney imaging |
| MSK | Muscles, tendons, ligaments, and joints |
| Small Parts | Thyroid, breast, testicular, and superficial scans |
Optional Probes Available
Choose from a wide selection of probes to meet specific clinical requirements:
| Probe Type | Application |
|---|---|
| Convex Probe | Abdomen, Obstetrics, Gynecology |
| Linear Probe | Small Parts, Vascular, Musculoskeletal |
| Phased Array Probe | Cardiac function, Heart chambers, Effusion |
| 4D Volume Probe | Fetal and obstetric imaging |
| Transvaginal Probe | Gynecology, Obstetrics, Urology |
| Transrectal Probe | Prostate imaging |
| Micro-Convex Probe | Pediatric and neonatal imaging |
Technical Advantages
✅ Dual-screen control system for enhanced workflow
✅ Four-probe active connection ports for multi-specialty use
✅ High-speed computing platform for fluid scanning
✅ LAN and DICOM 3.0 compatibility
✅ Ergonomic mobility with smooth-rolling wheels
✅ Pre-configured measurement packages for specialized applications
✅ User-friendly interface with customizable settings
Sample Imaging Results
The Trolley Color Ultrasonic Diagnostic Apparatus produces clear, high-definition diagnostic images, including:
-
Fetal 2D & 4D ultrasound imaging
-
Abdominal organ visualization
-
Cardiac Doppler waveform analysis
-
Vascular color flow imaging
-
Small organ and musculoskeletal detail scanning
These results help healthcare professionals provide faster, more confident diagnoses.
Package Includes
-
Main trolley-mounted ultrasound system
-
Standard probe set (based on configuration)
-
Power supply cable and accessories
-
User manual and digital guide
-
Optional training and installation support
🌍 Why Choose Sinako Medical
Sinako Medical is a trusted global supplier of certified medical and aesthetic equipment, committed to empowering healthcare professionals with reliable, high-quality technology.
✅ CE and SAHPRA approved devices
✅ Free worldwide delivery on all equipment
✅ 2-year warranty on all laser and ultrasound machines
✅ Detailed setup video guidance included with every order
✅ Live online support & training sessions available on request
✅ Transparent pricing with no hidden costs
✅ Professional after-sales support for peace of mind
At Sinako Medical, we believe in making world-class technology accessible to clinics, hospitals, and aesthetic practices globally — backed by care, integrity, and excellence.
